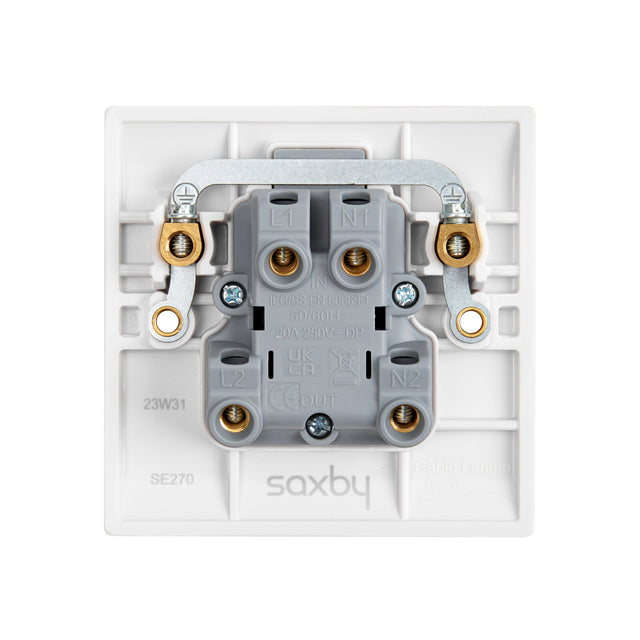

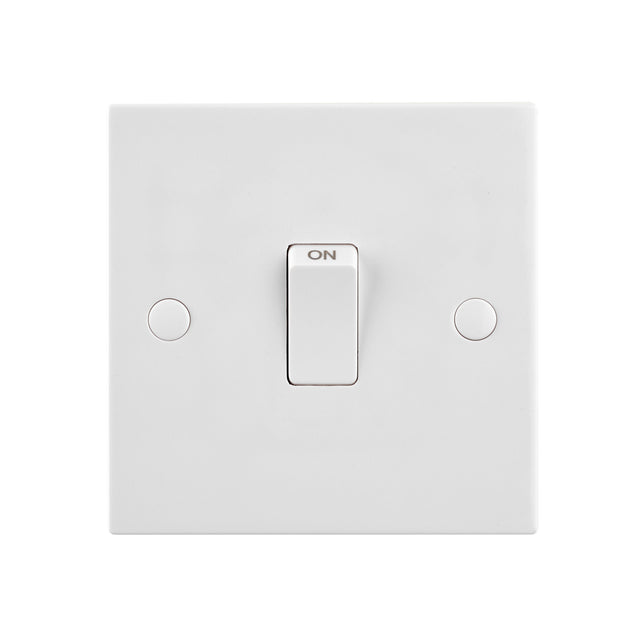

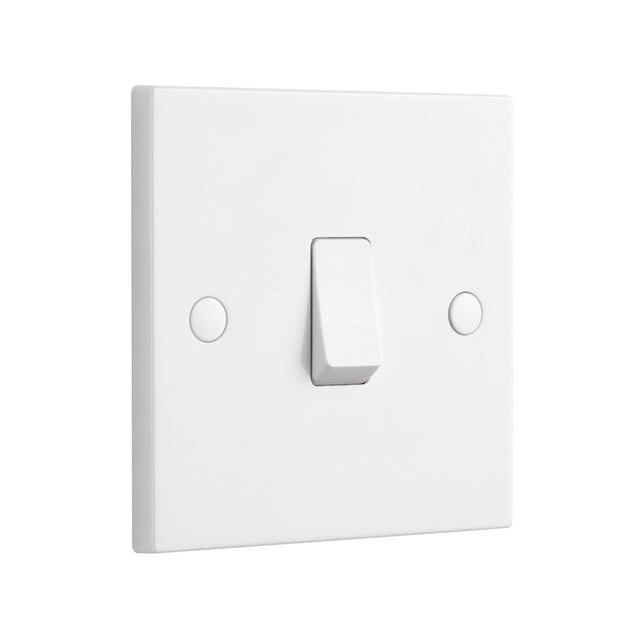

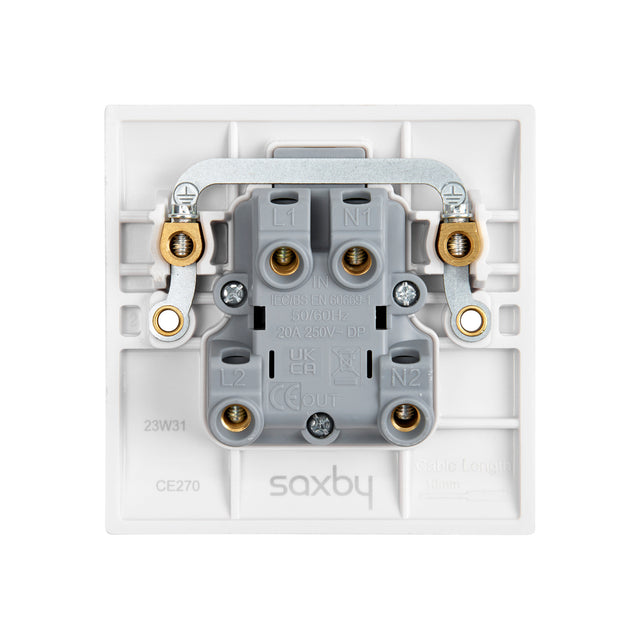

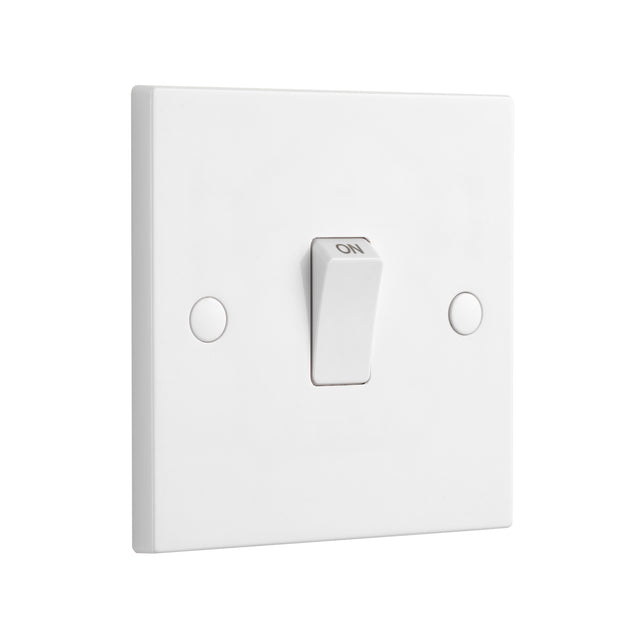

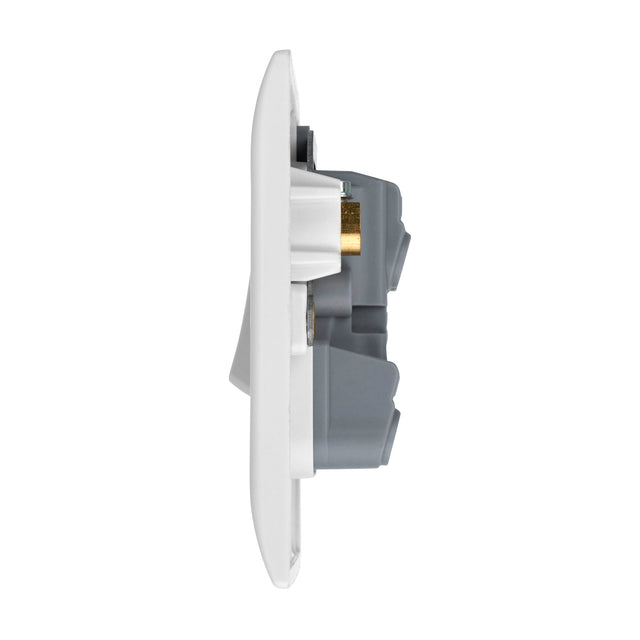

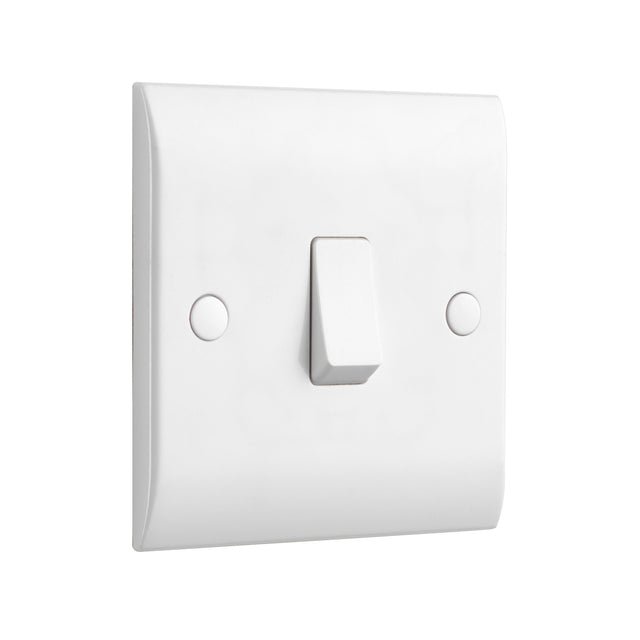

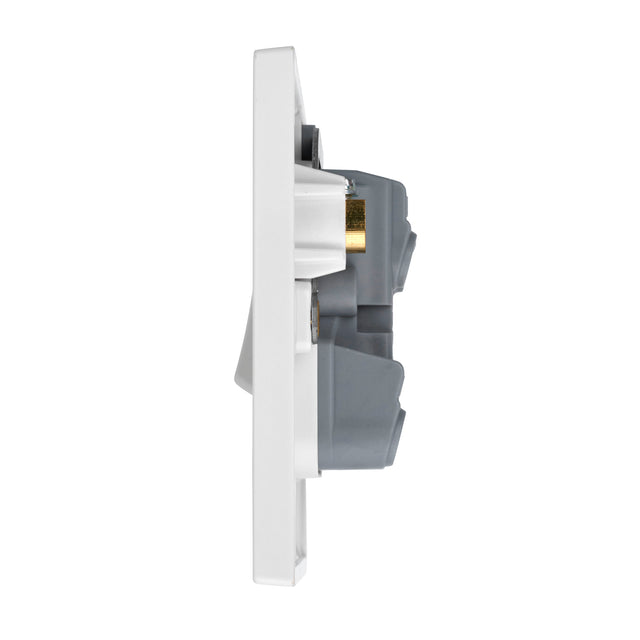

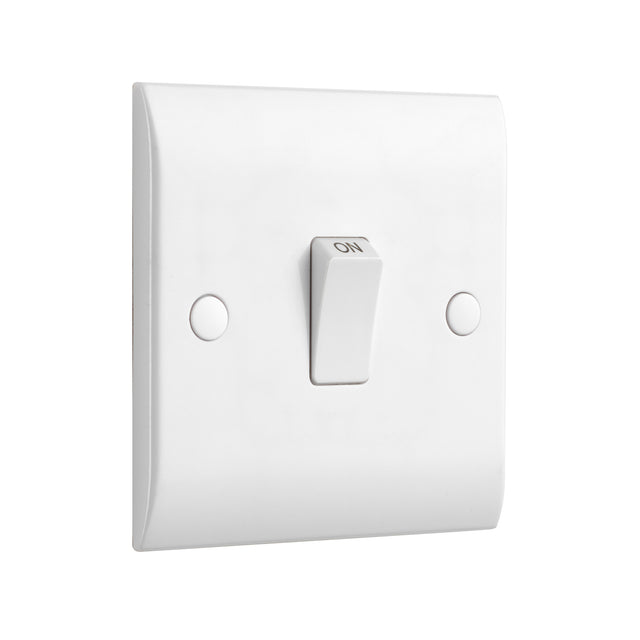

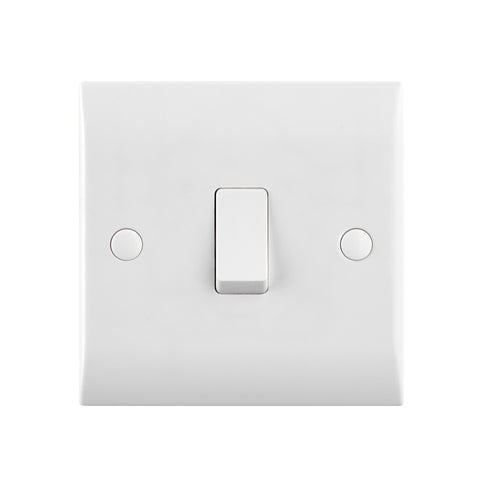

20A 1G DP Switch
€16.11
Our 20A rated switch boasts captive screws which provide for quick, easy and a hassle free installation
Supplied with fixing screws & white screw covers for sleek appearance
Double pole switching for the peace of mind of a safer installation of your socket
This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
We recommend a minimum mounting box depth of 25mm
Certified to IEC/BS EN60669
Dimensions: 26.7mm depth x 86mm height x 86mm width
Class: 1
Minimum Mounting Box Depth: 25
Switch Type: Double Pole
Anti Fingerprint Lacquer: Yes
Anti Microbial Property: Yes
Cable Entry: 10
Cable Gland Included: No
Captive Terminal Screws: Yes
Ethernet Terminal: No
Fixing Screws Supplied: Yes
Screw Cap Covers: Included
Max Load: 20A
Neon Indicator: No
No Of Earth Terminals: 2
Terminal Capacity: 6²*1/ 2.5²*3/ 4²*2
Manufactured In Accordance With: IEC/BS EN60669
