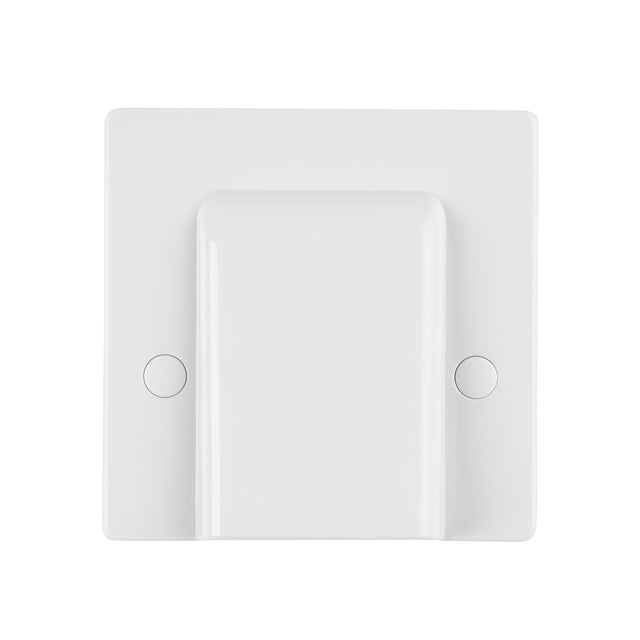

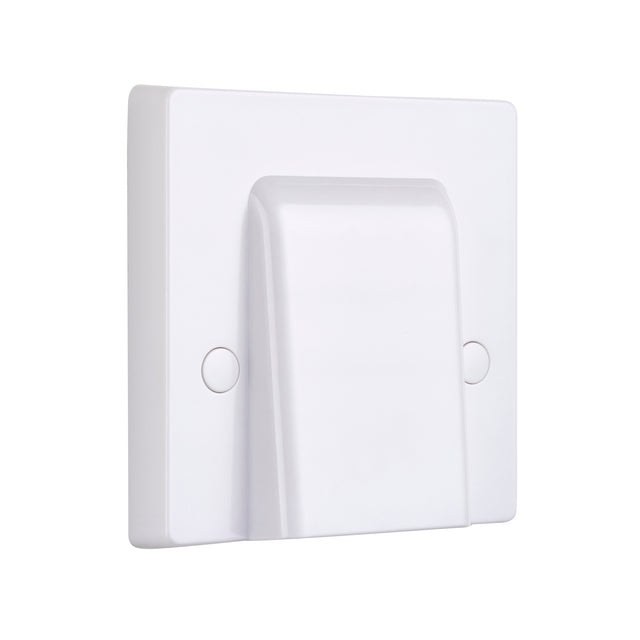

45A Cooker Connection Unit
€18.63
Rated to 45A
Suitable for cookers and ovens
Supplied with fixing screws & white screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
This has been manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
We recommend a minimum mounting box depth of 25mm
Certified to BS 5733
Dimensions: 40mm depth x 86mm height x 86mm width
Class: 1
Minimum Mounting Box Depth: 25
Anti Fingerprint Lacquer: Yes
Anti Microbial Property: Yes
Cable Gland Included: No
Captive Terminal Screws: Yes
Ethernet Terminal: No
Fixing Screws Supplied: Yes
Screw Cap Covers: Included
Max Load: 45A
Neon Indicator: No
No Of Earth Terminals: 1
Terminal Capacity: 16²*1/ 6²*2/ 4²*3/ 2.5²*4
Manufactured In Accordance With: BS 5733
Dimensions: 40mm depth x 86mm height x 86mm width
Class: 1
Minimum Mounting Box Depth: 25
Anti Fingerprint Lacquer: Yes
Anti Microbial Property: Yes
Cable Gland Included: No
Captive Terminal Screws: Yes
Ethernet Terminal: No
Fixing Screws Supplied: Yes
Screw Cap Covers: Included
Max Load: 45A
Neon Indicator: No
No Of Earth Terminals: 1
Terminal Capacity: 16²*1/ 6²*2/ 4²*3/ 2.5²*4
Manufactured In Accordance With: BS 5733
