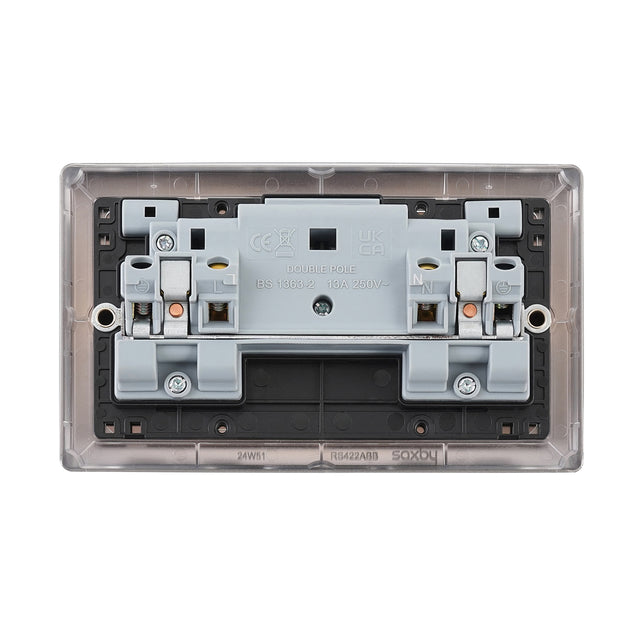

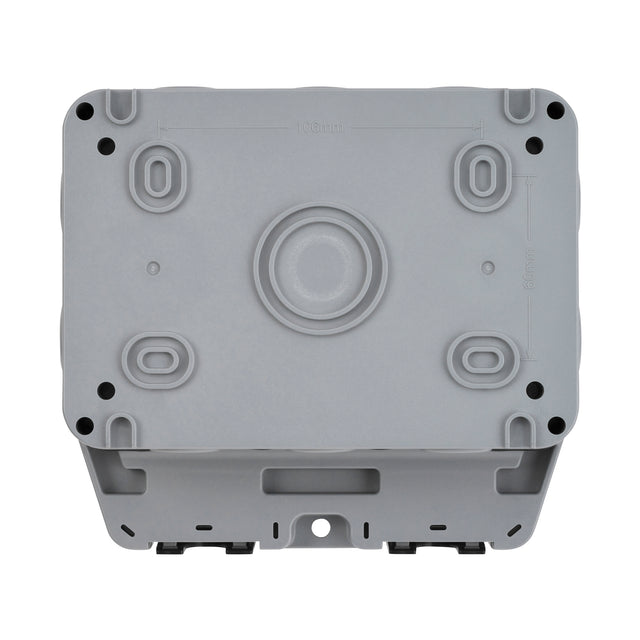

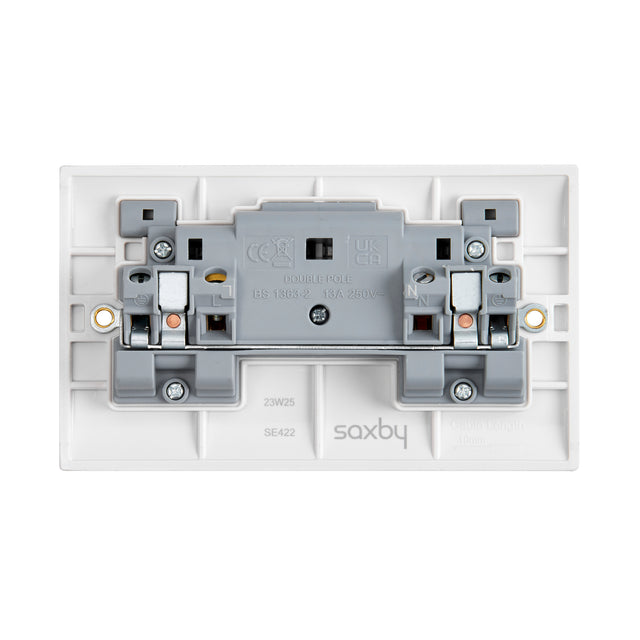

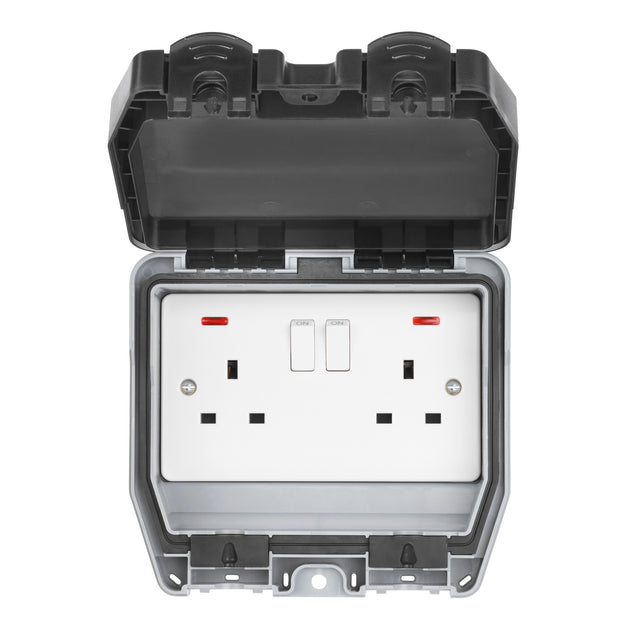

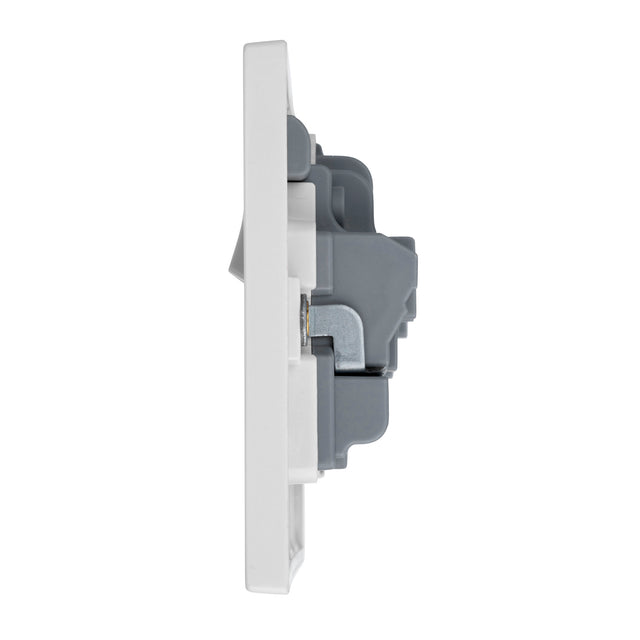

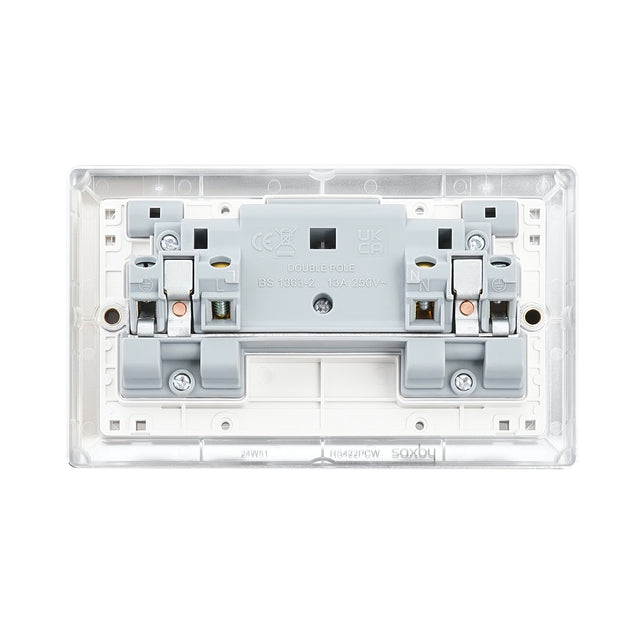

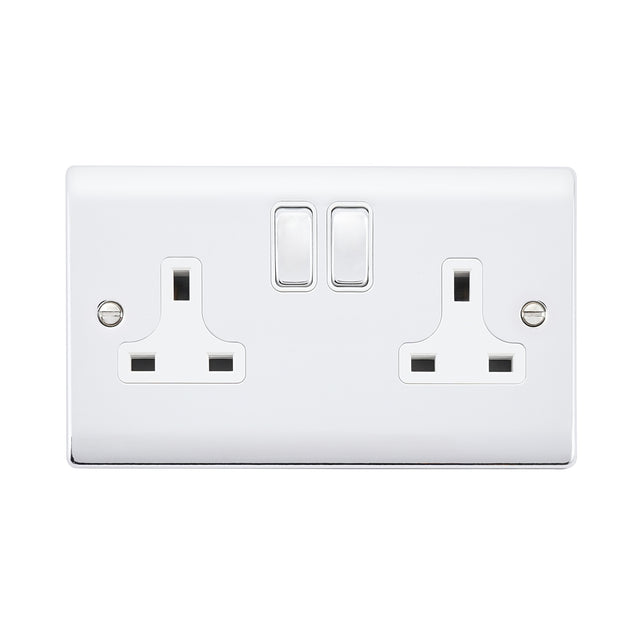

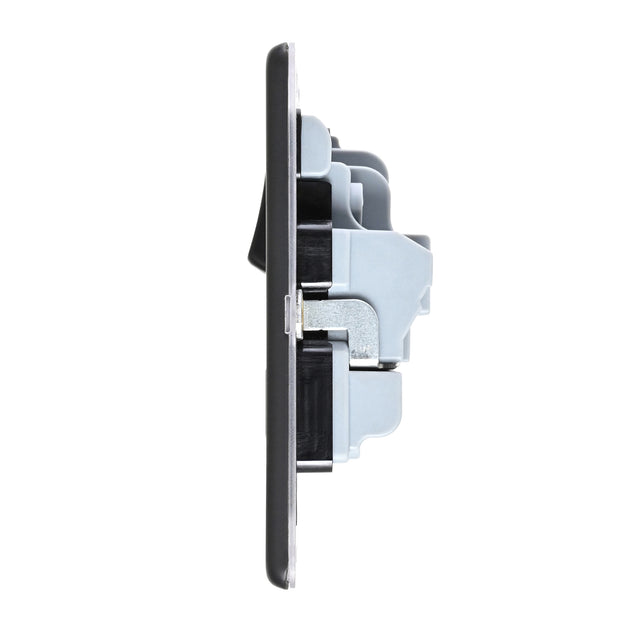

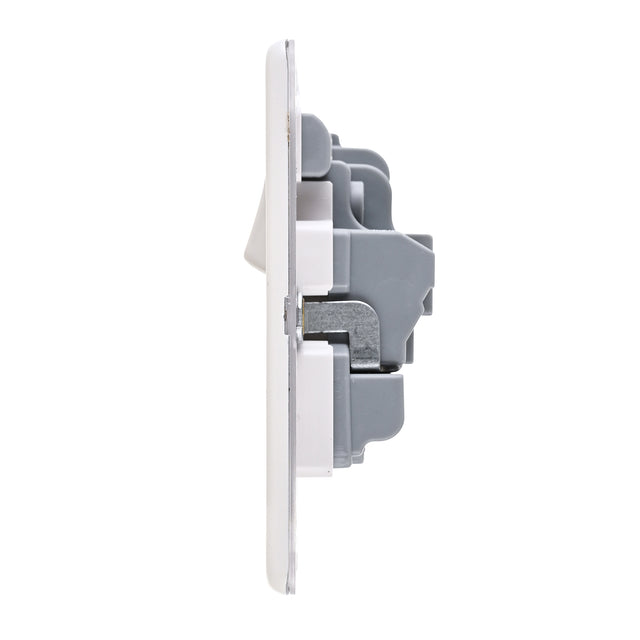

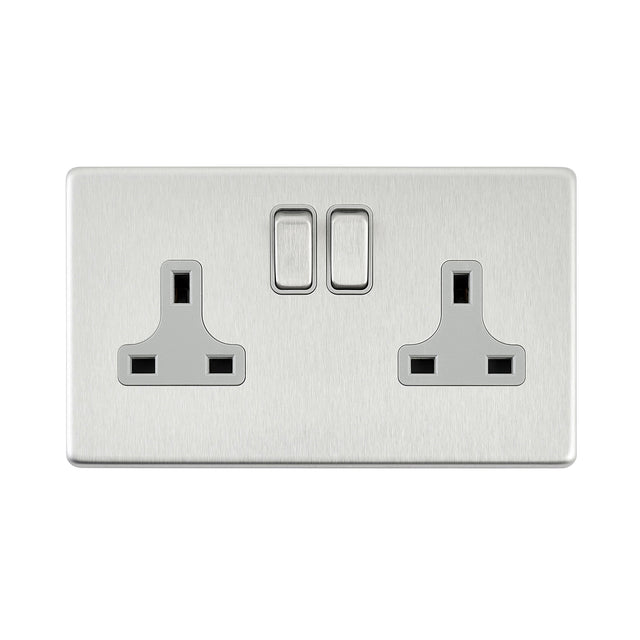

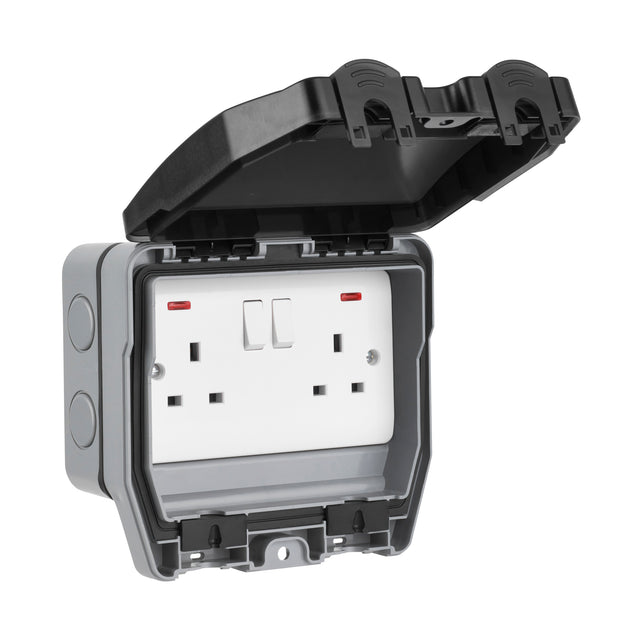

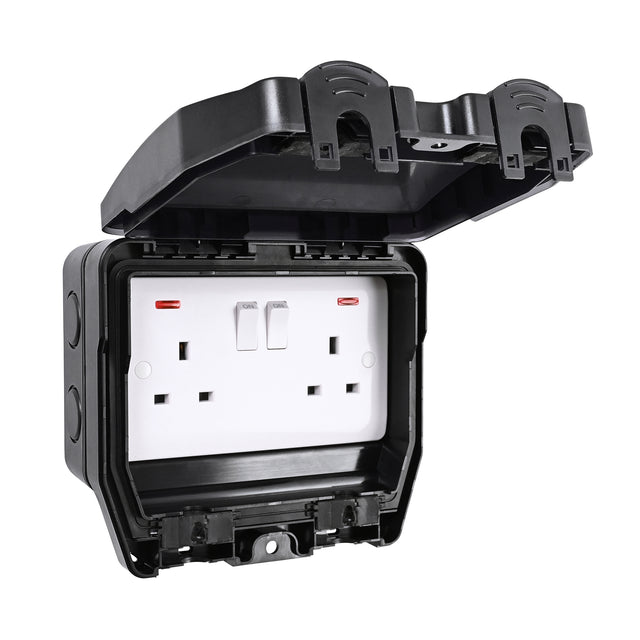

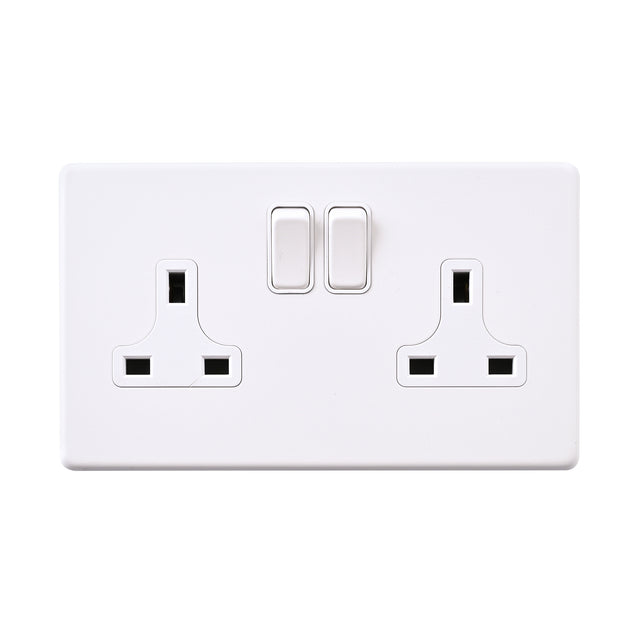

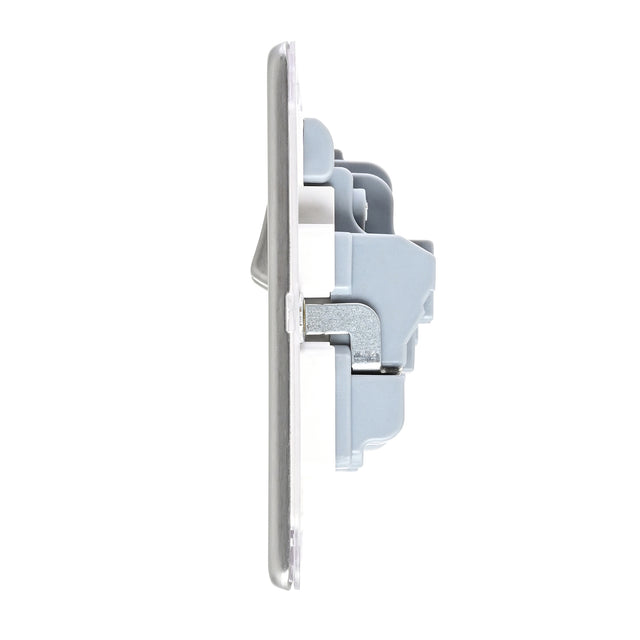

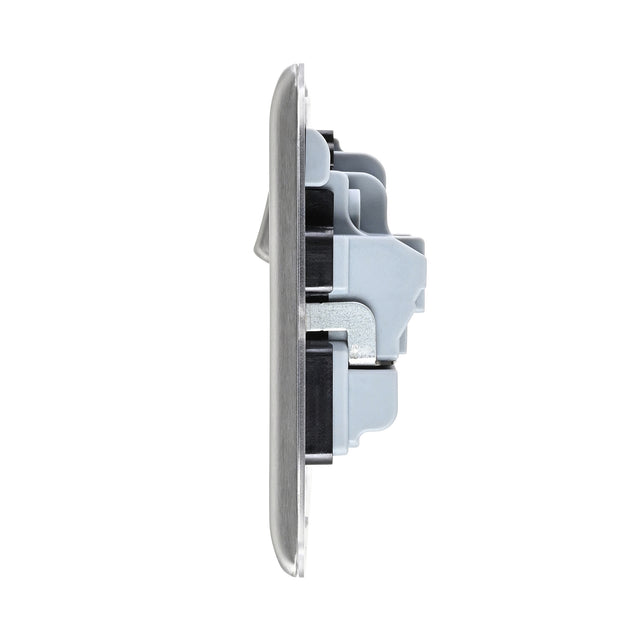

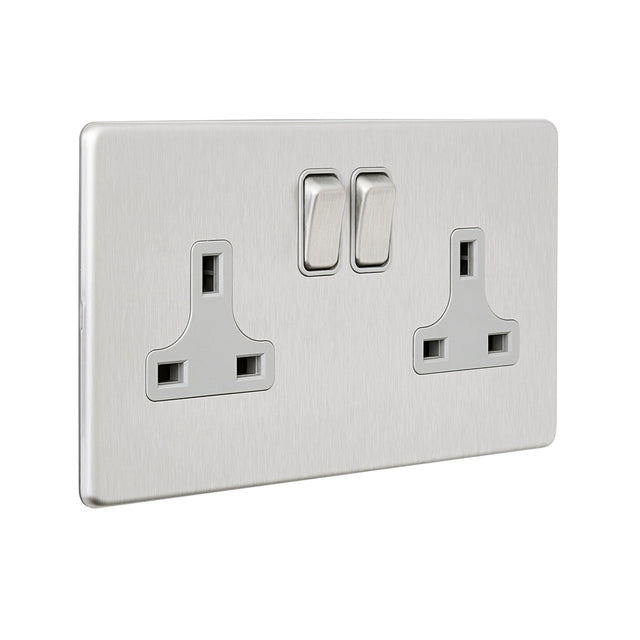

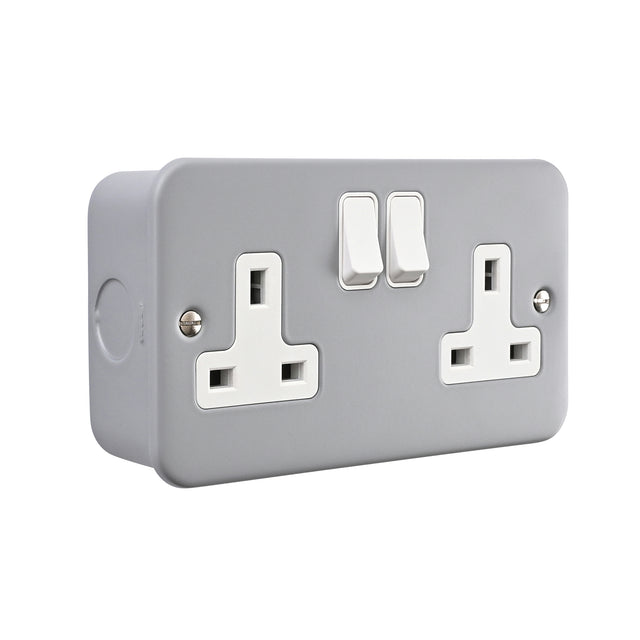

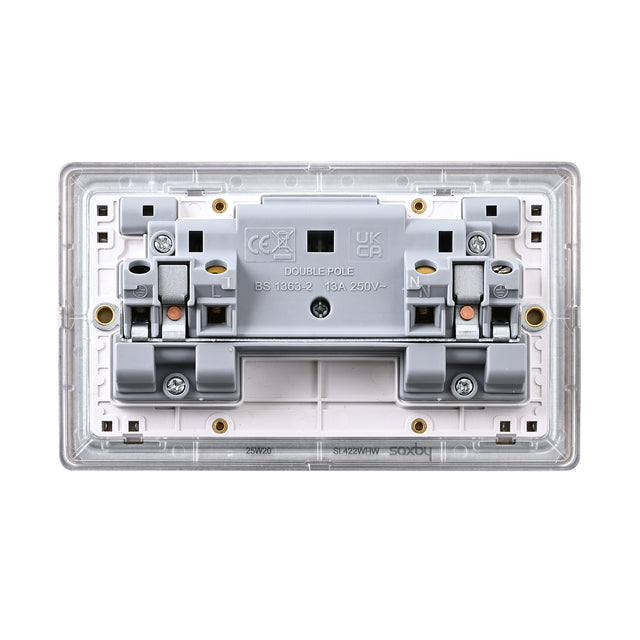

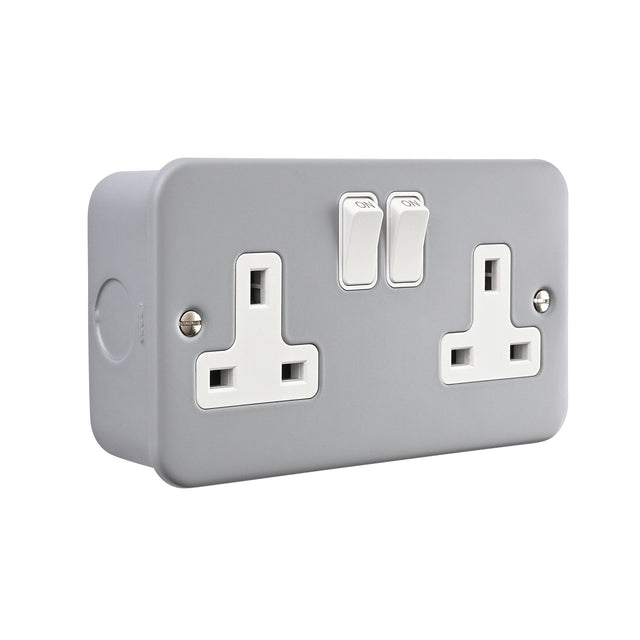

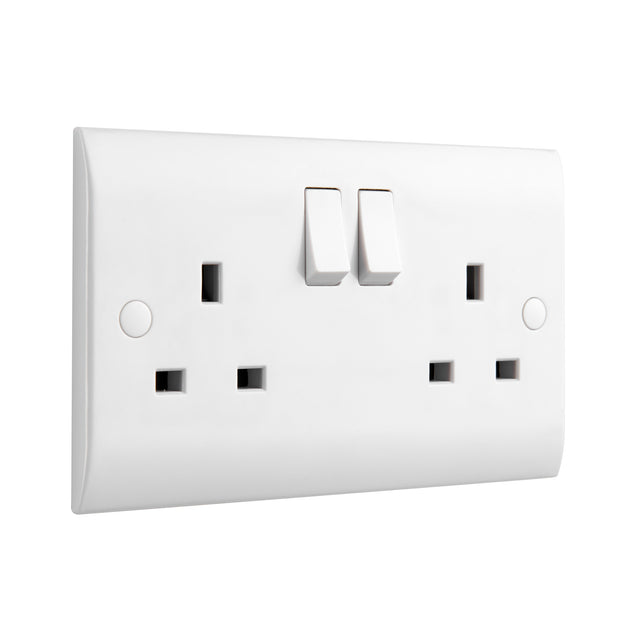

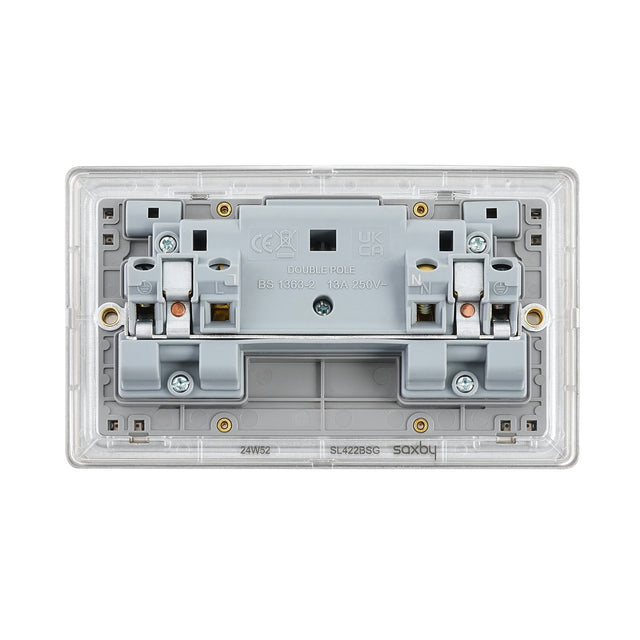

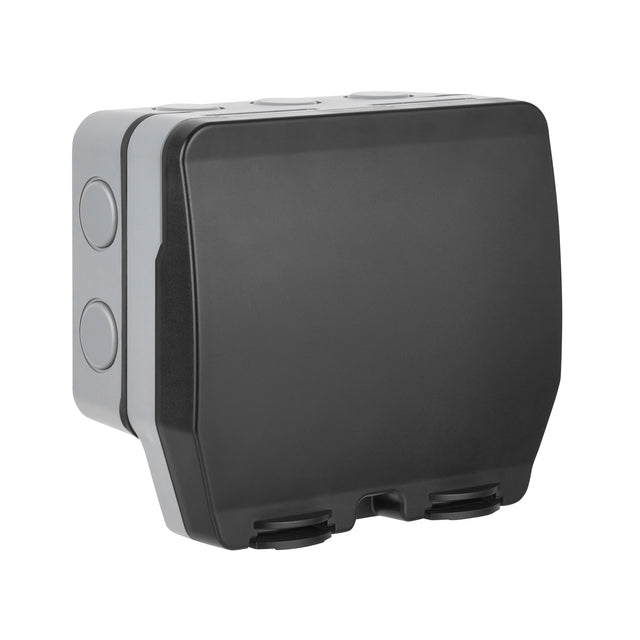

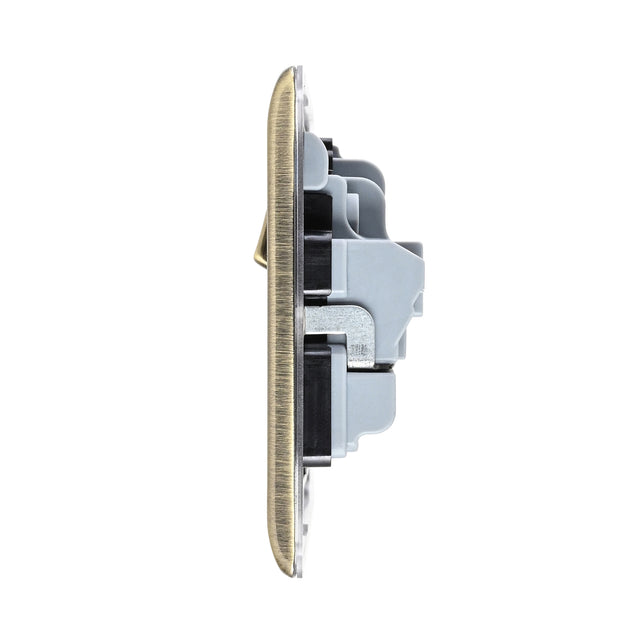

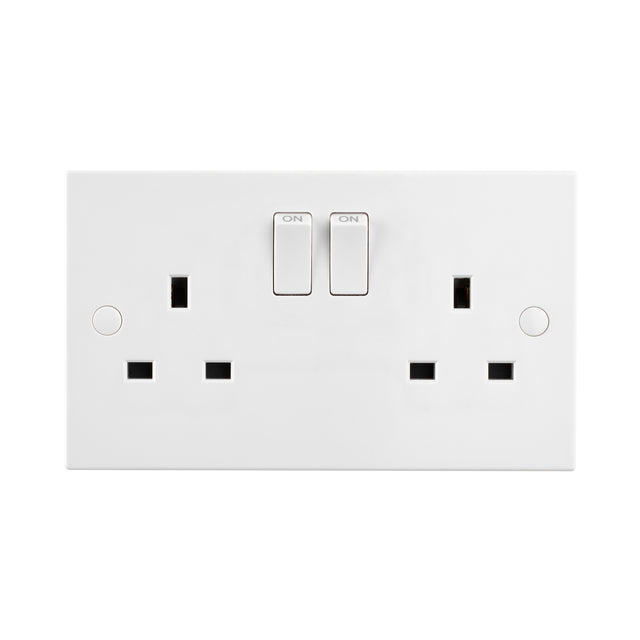

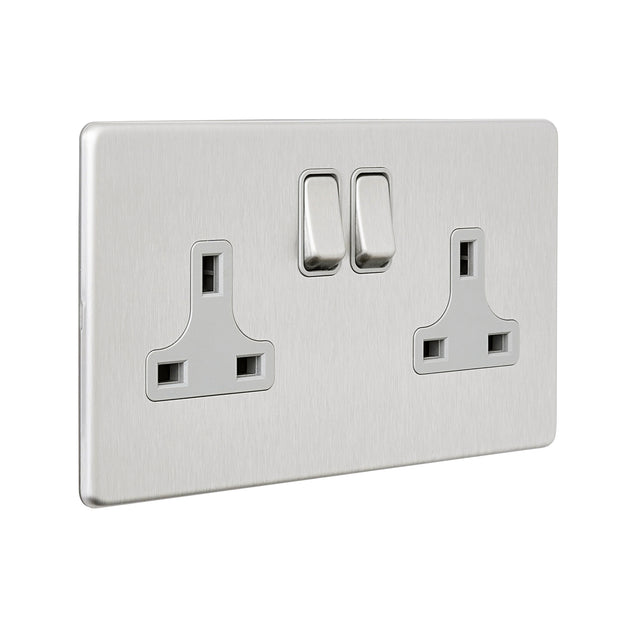

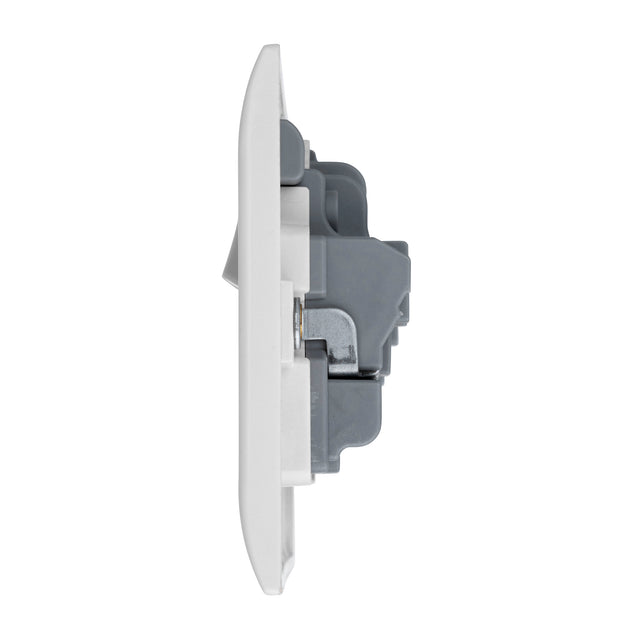

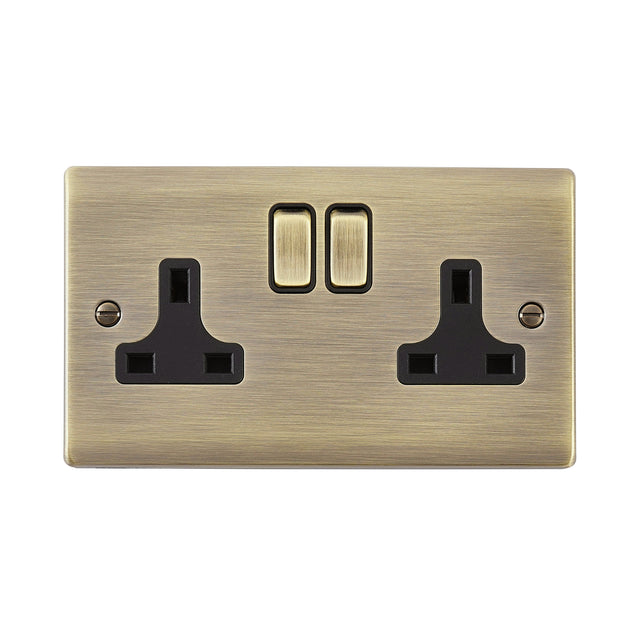

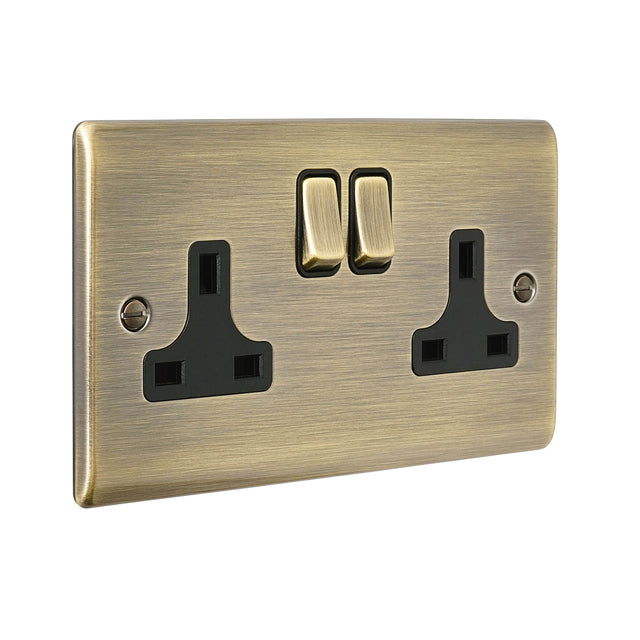

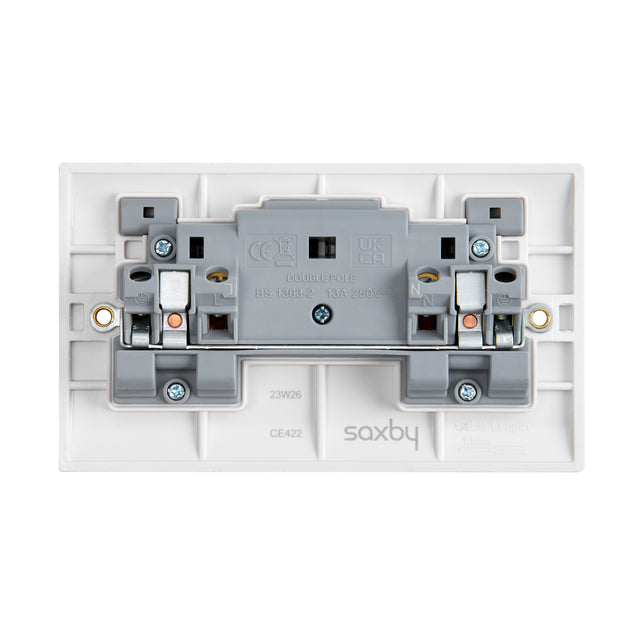

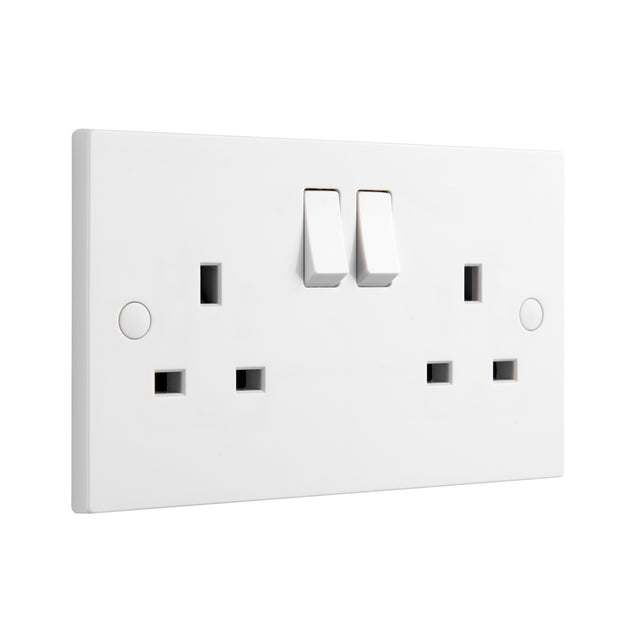

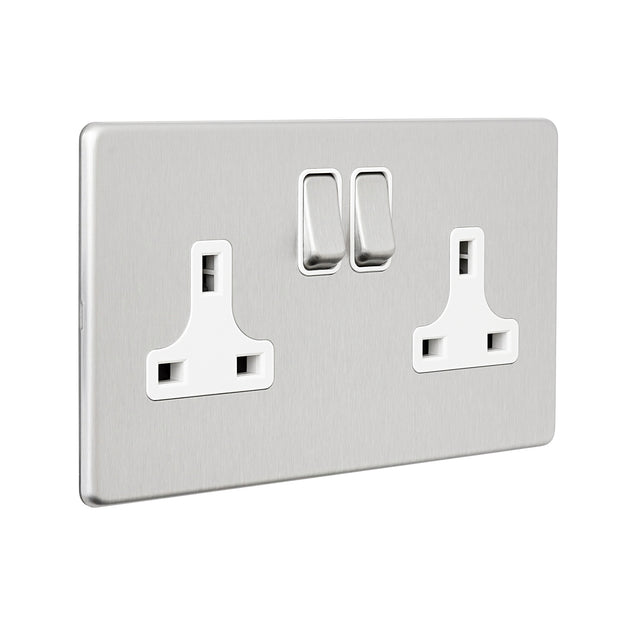

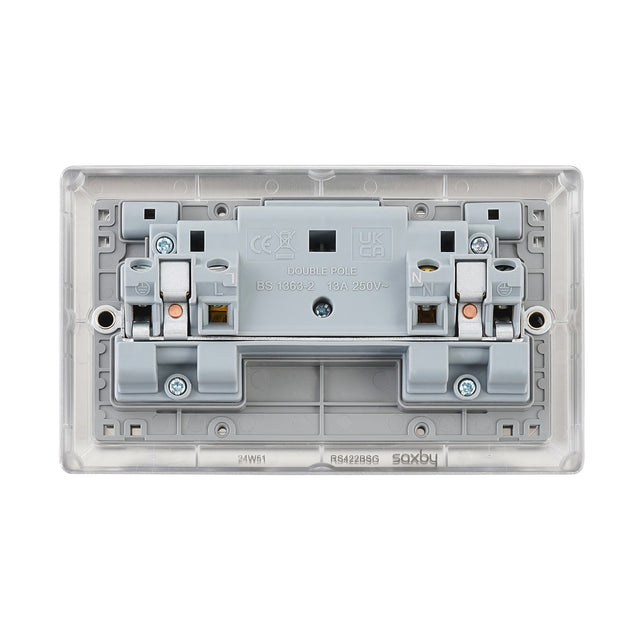

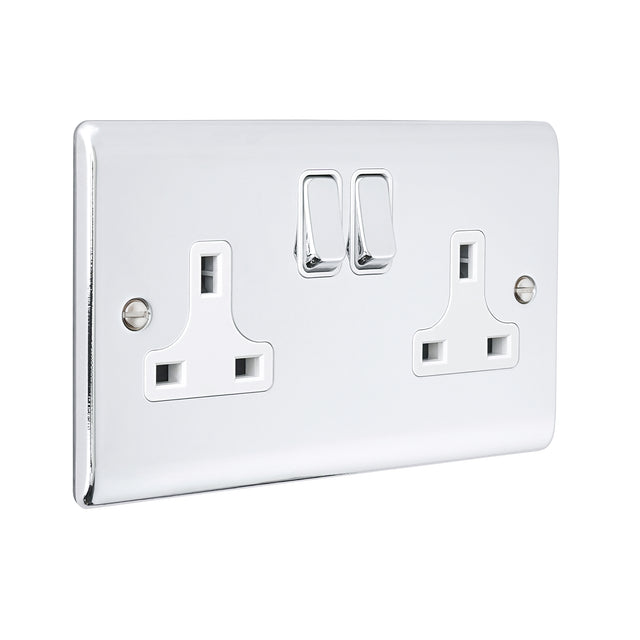

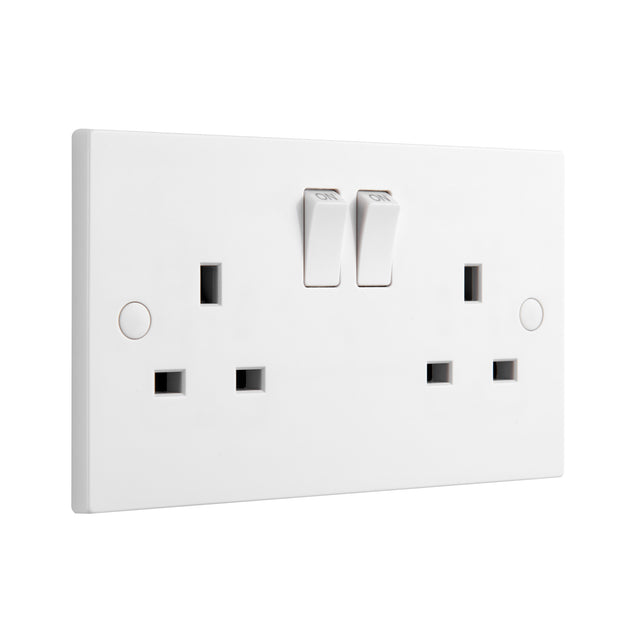

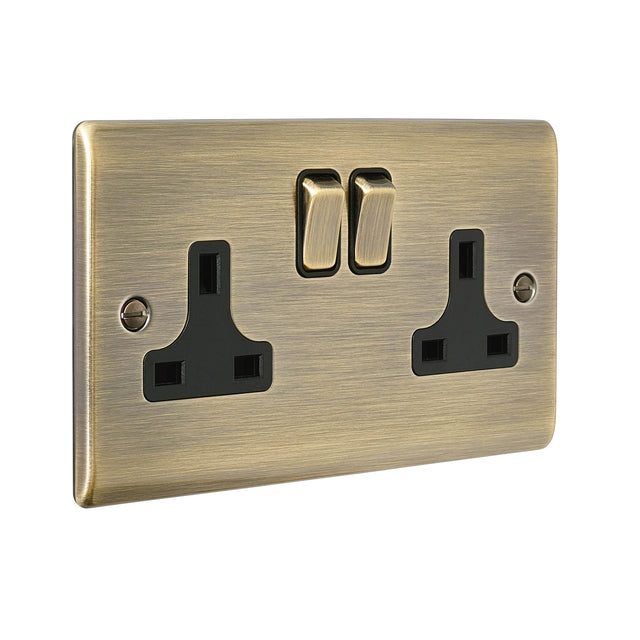

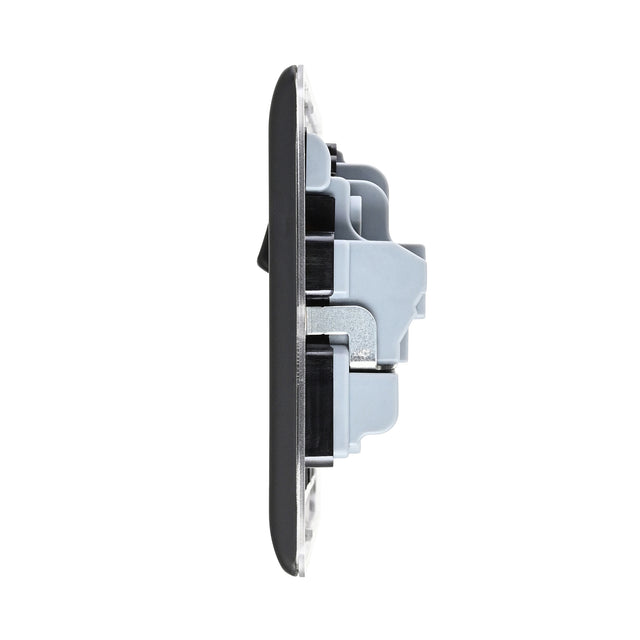

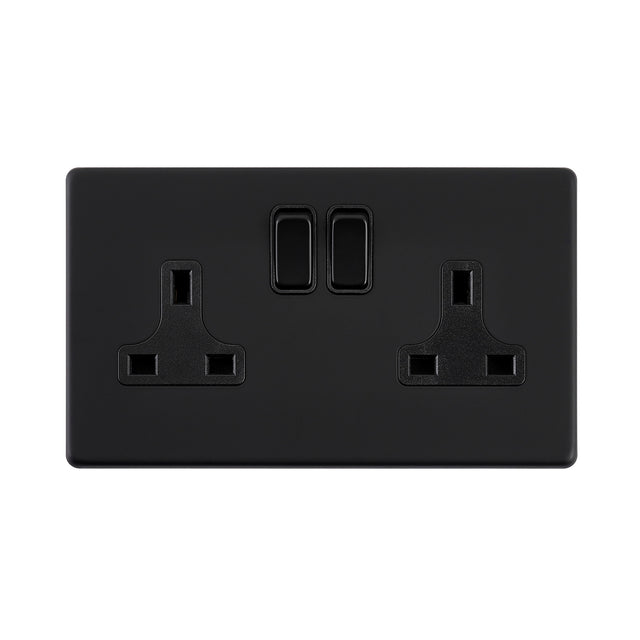

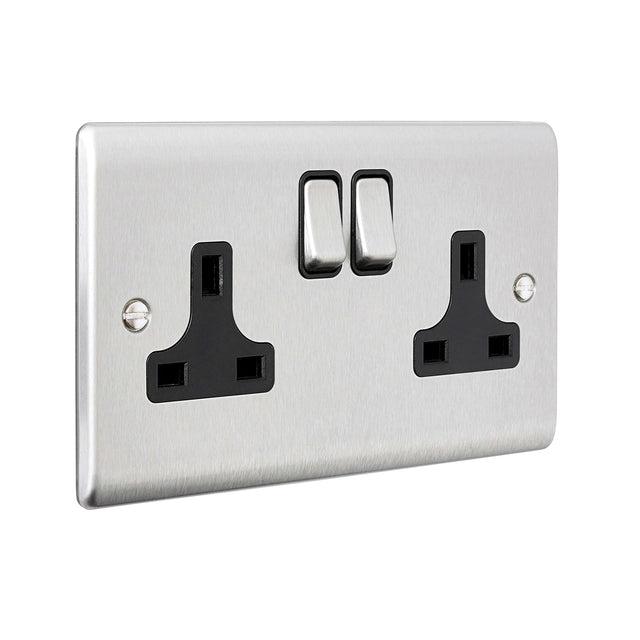

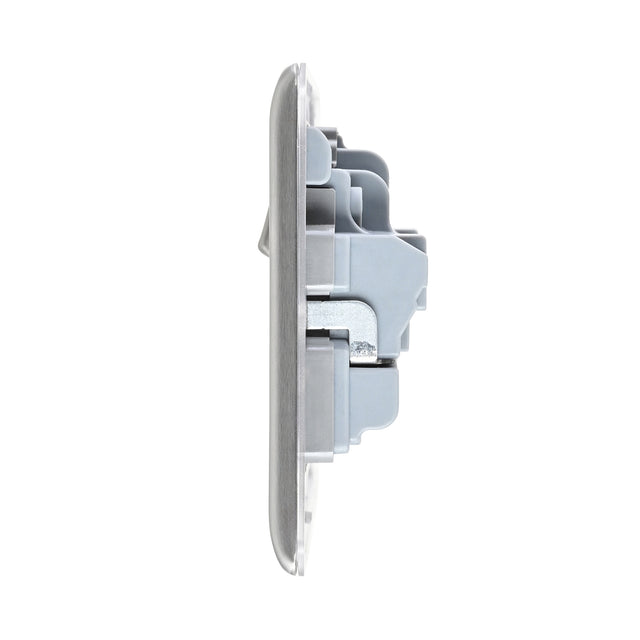

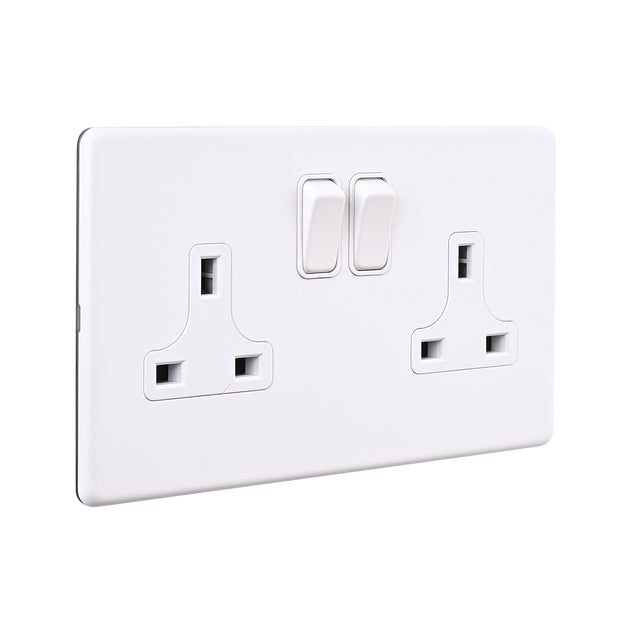

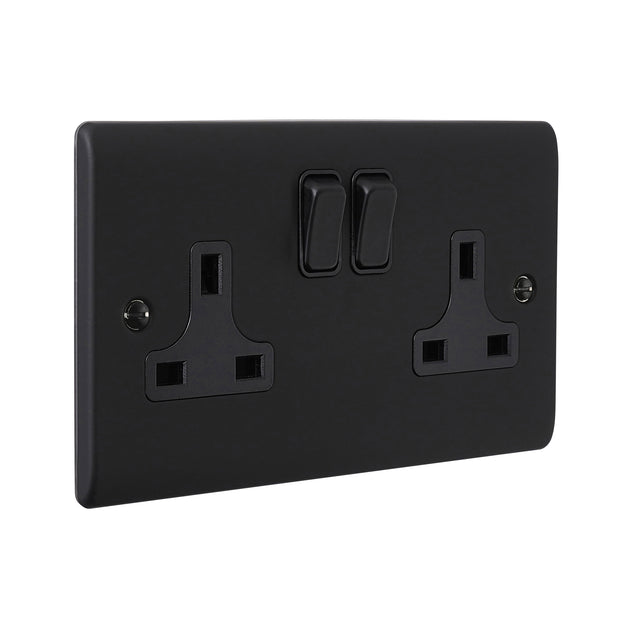

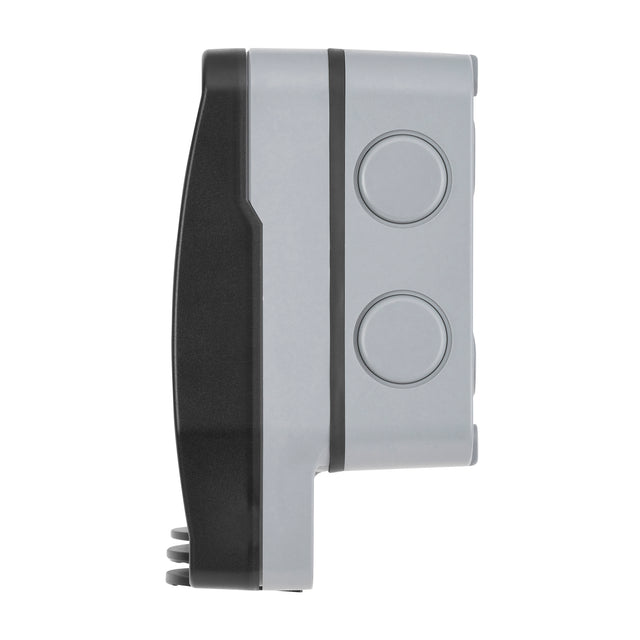

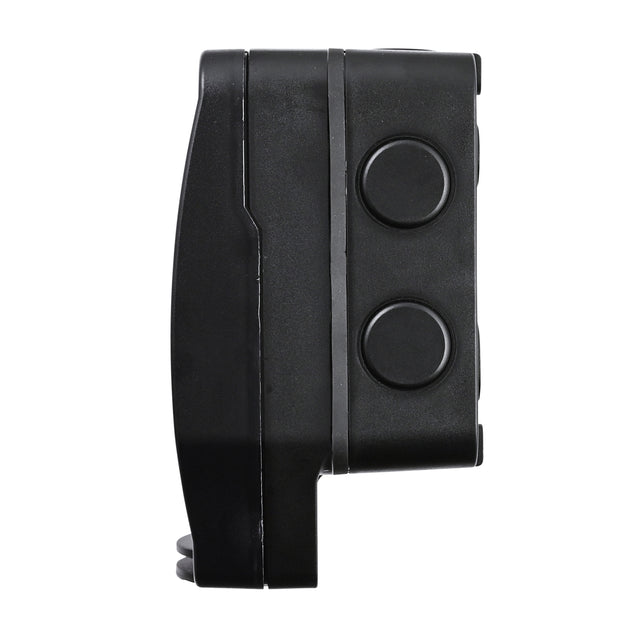

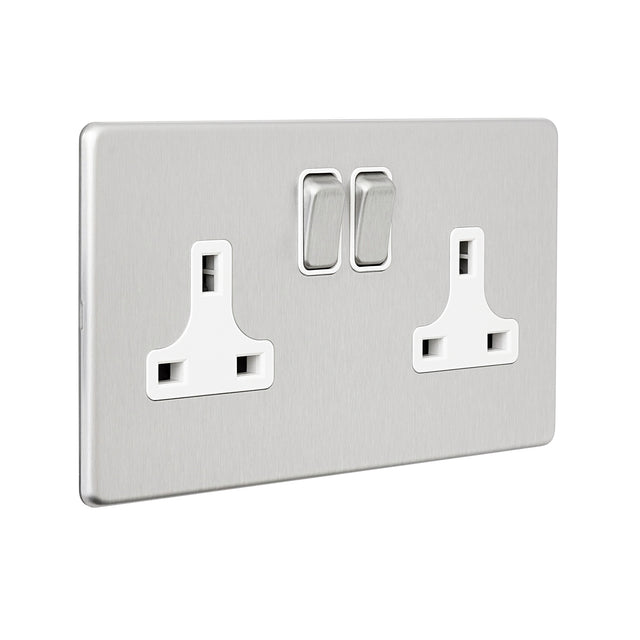

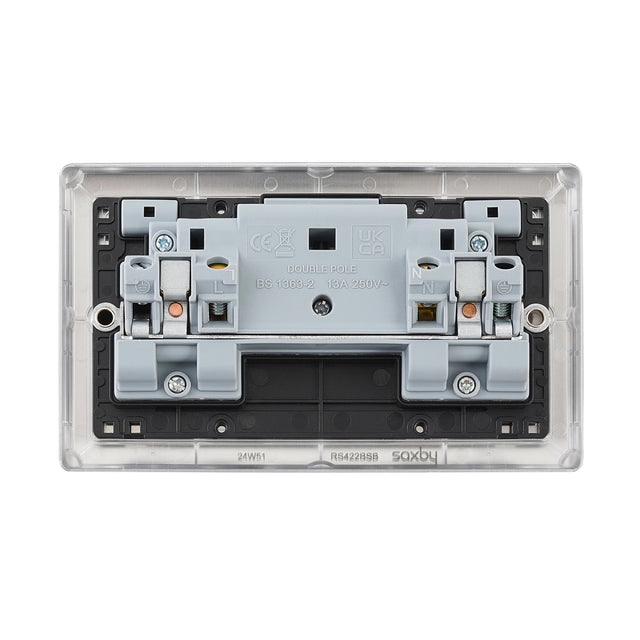

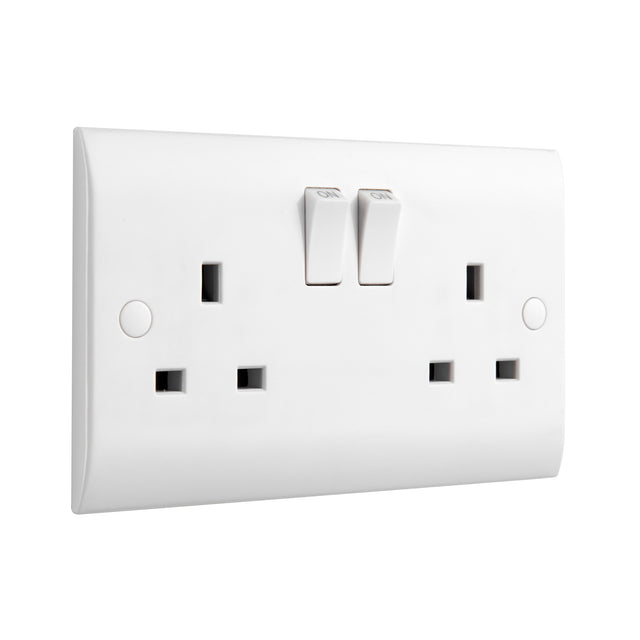

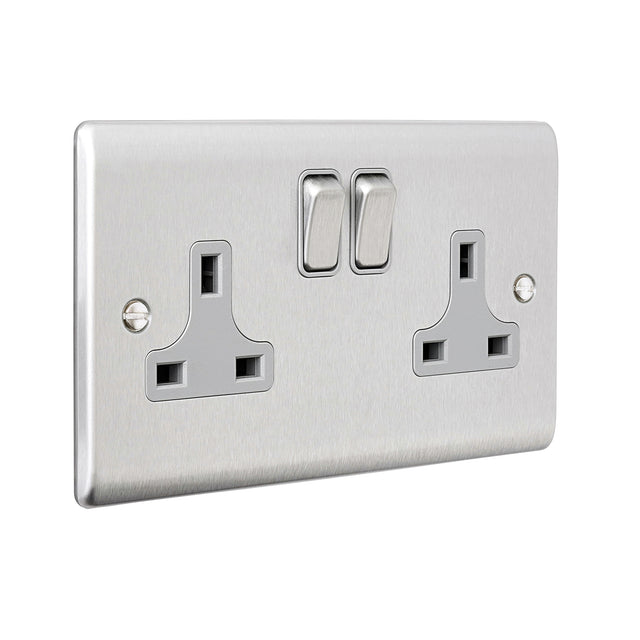

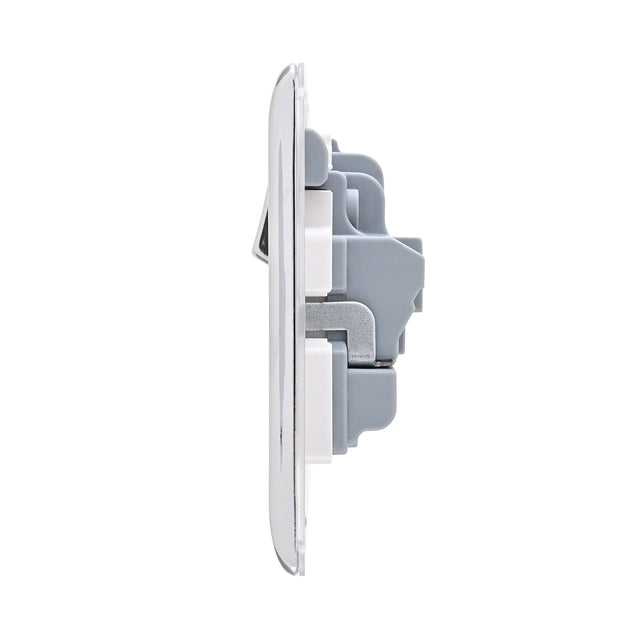

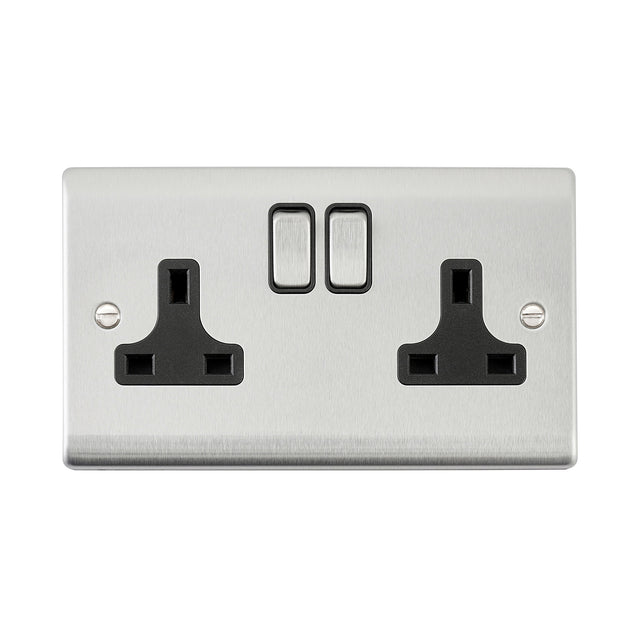

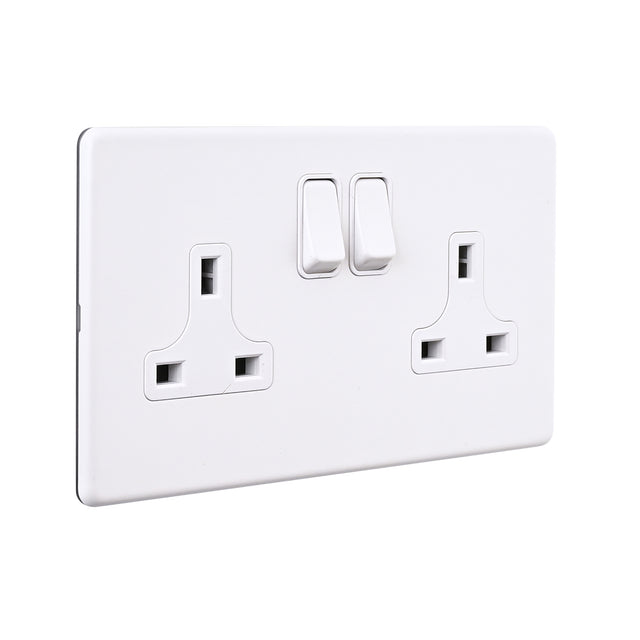

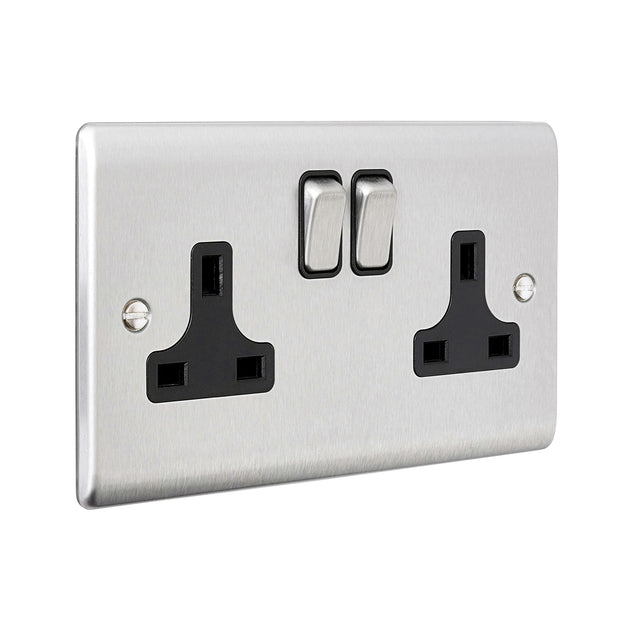

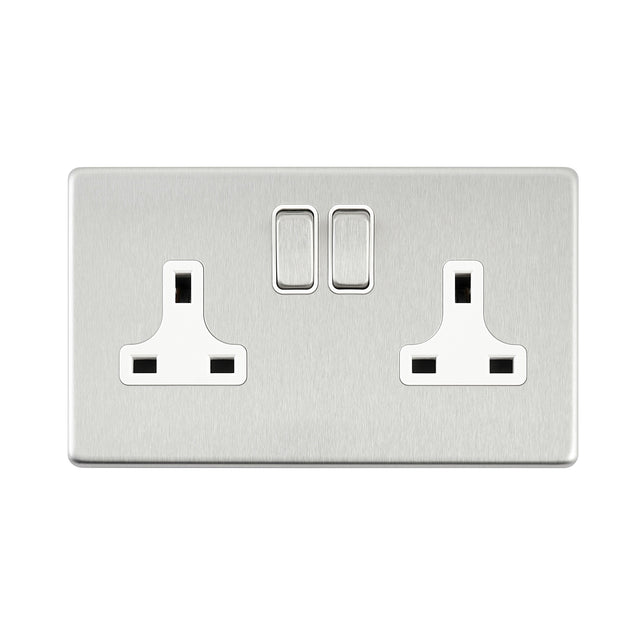

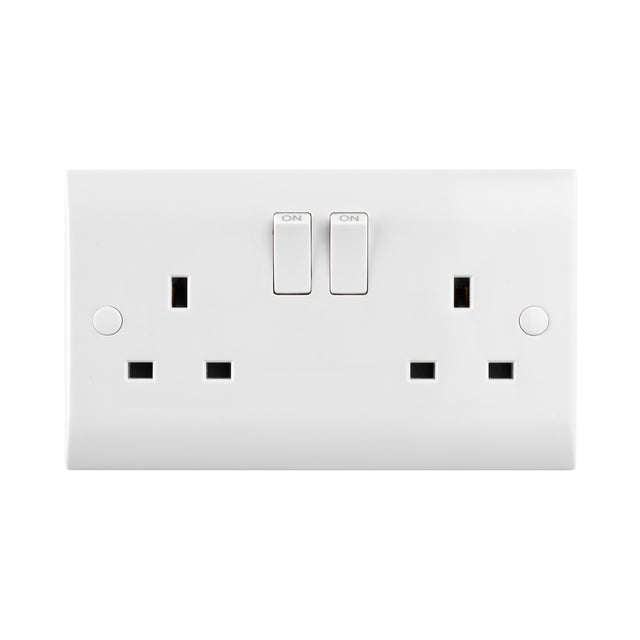

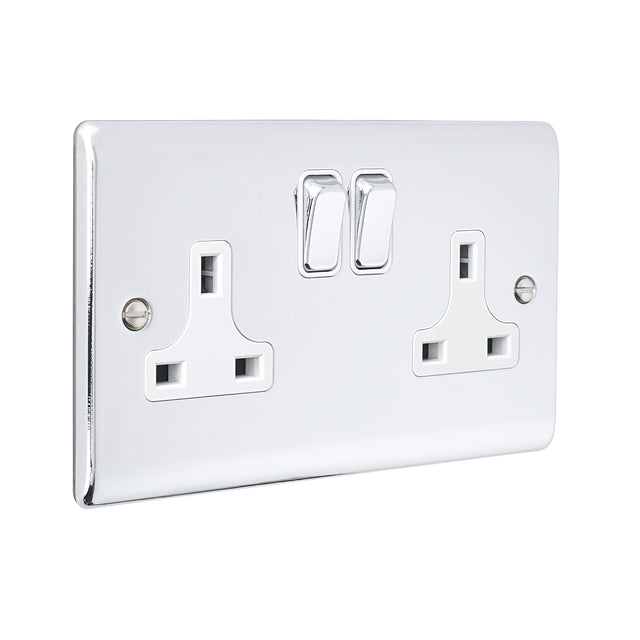

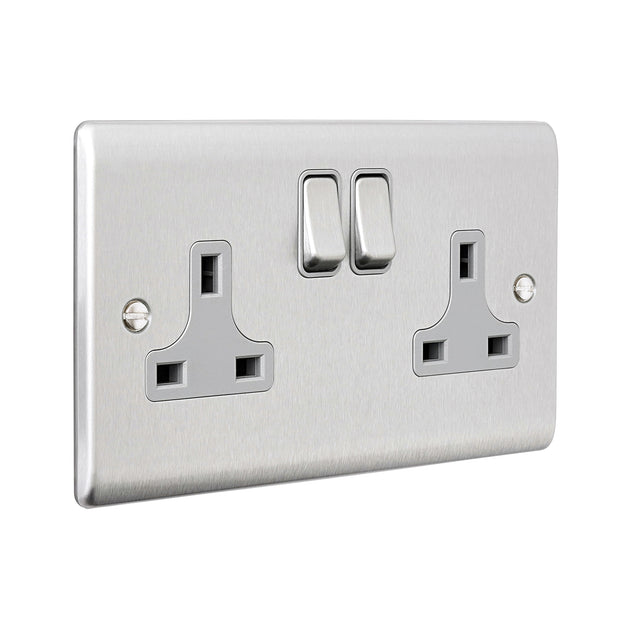

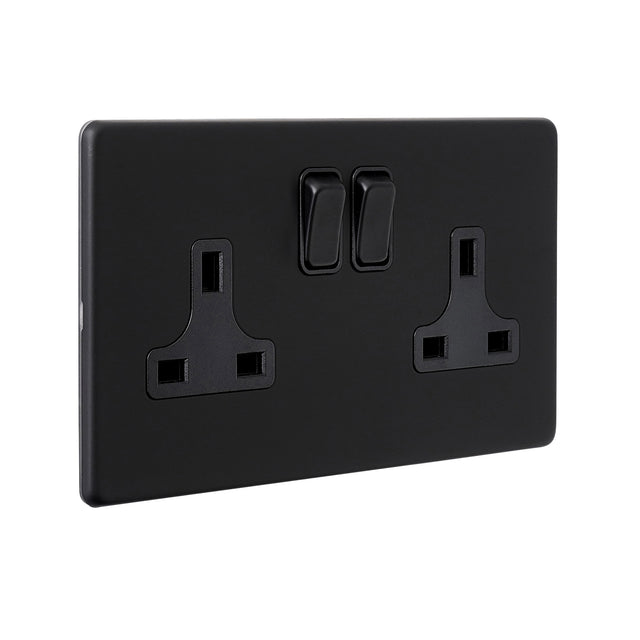

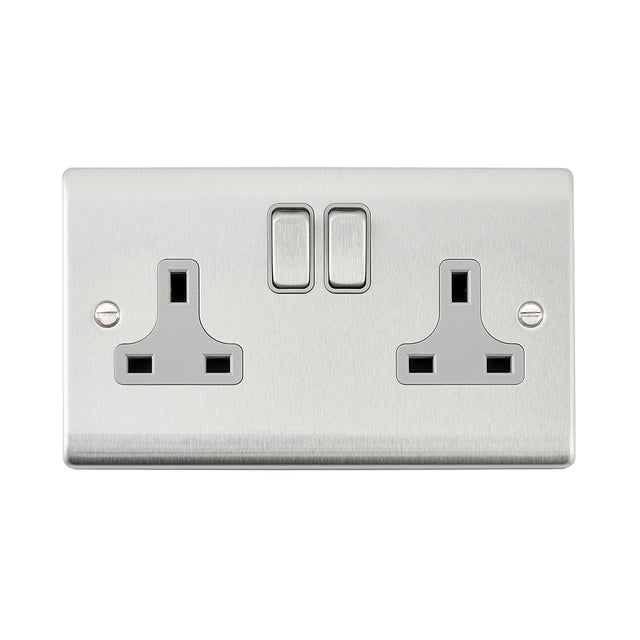

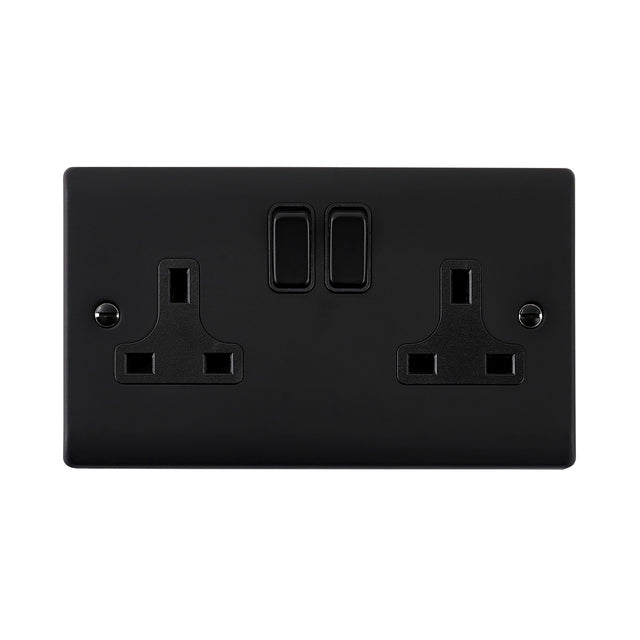

13A 2G DP Switched Socket

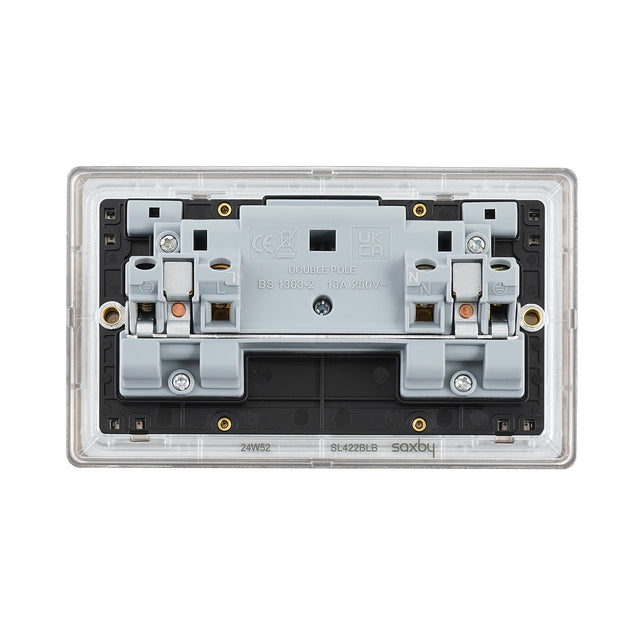

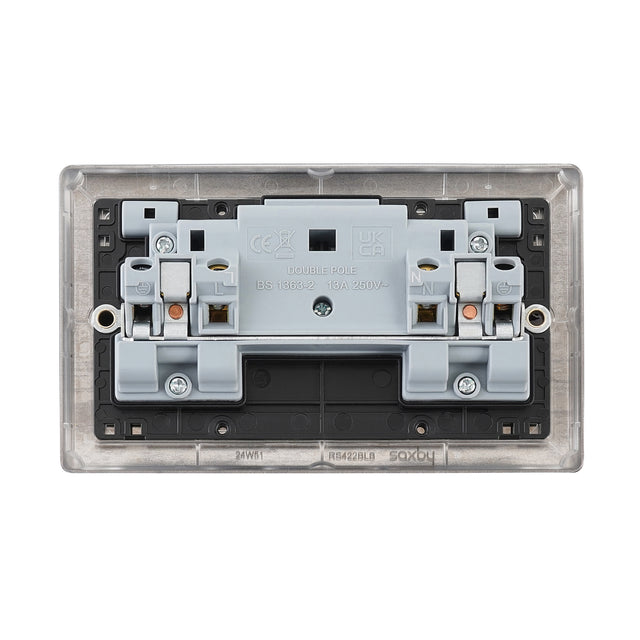

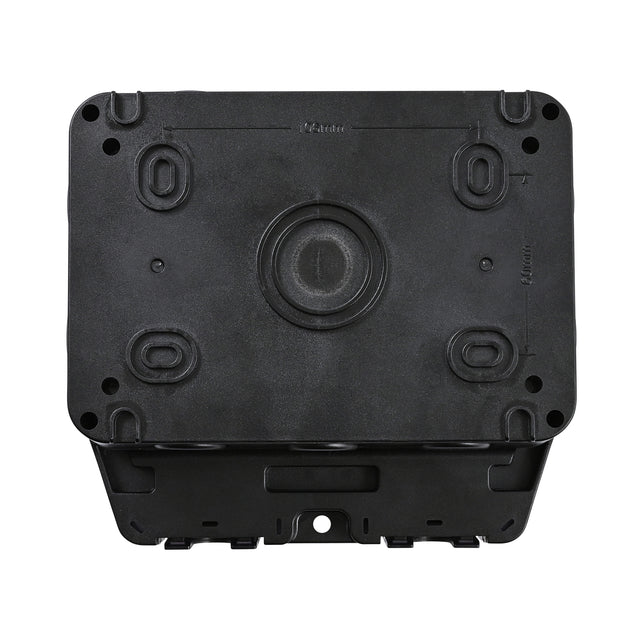

Our 13A rated socket boasts captive screws which provide for quick, easy and hassle free installation Supplied with fixing screws Etched terminal markings for quick identification Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection Double pole switching for the peace of mind of a safer installation of your socket Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing Finished in a high quality powder coating to help protect against scratches We recommend using a standard metal surface box with a depth of 40mm - MC902 Certified to BS 1363-2
Dimensions: 42.5mm depth x 86mm height x 146mm width
Class: 1
Socket Type: 2G-2P UK 13A
Switch Type: Double Pole
Anti Microbial Property: Yes
Cable Entry: 10
Cable Gland Included: No
Captive Terminal Screws: No
Ethernet Terminal: No
Fixing Screws Supplied: Yes
Screw Cap Covers: No
Max Load: 13A
Neon Indicator: No
No Of Earth Terminals: 1

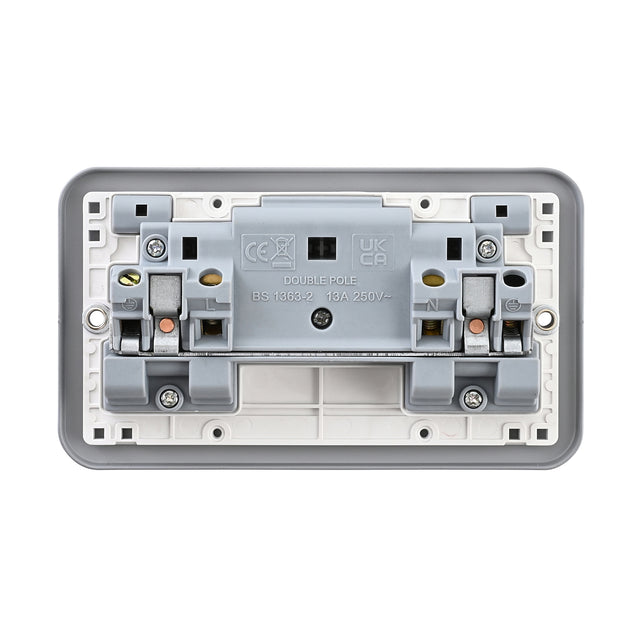

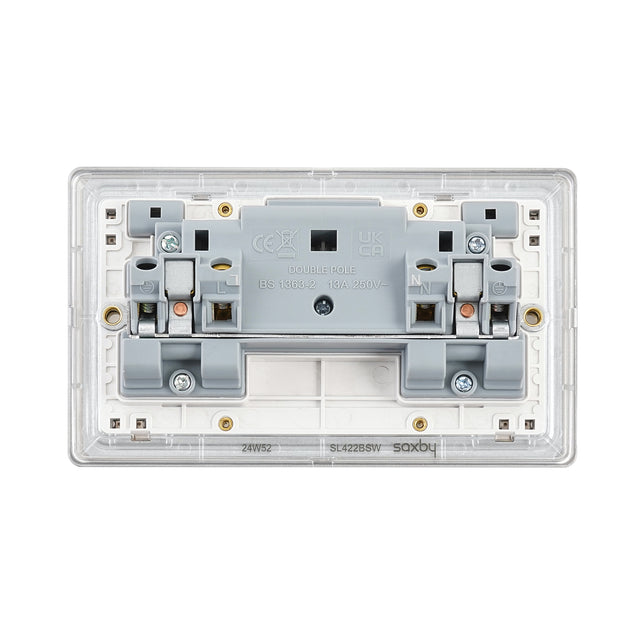

Terminal Capacity: 6²*1/ 4²*1/ 2.5²*3
Manufactured In Accordance With: BS 1363-2
