Trimless Square

Material: Steel
IP Rating: IP65
Bathroom Zone: Zone 1, 2, 3
Driver Required?: No
Class: Class II - Double Insulated
Fire Rated: 90 min BS476 part 21
F Mark: Not suitable for covering with thermal insulation
Screw Pack Included?: Yes
Switched: No
Type Of Dimmer: Lamp Dependent
Integrated LED / Bulb Included: No
Primary Light Source Quantity: 1
Primary Light Source Lifetime (Hrs): Lamp Dependent
Primary Lamp Cap Type: LED GU10
Primary Lumen Output: Lamp Dependent
Primary Colour Temperature: Lamp Dependent
Primary CRI: Lamp Dependent
Primary Recommended Lamp and Power: 1 x 6W Max LED GU10
Primary Rated Lamp and Power: 1 x 6W Max LED GU10
Primary Beam Angle: Lamp Dependent
Maximum Lamp Length (mm): 57
Primary Light Source Shape: MR16
Product Weight (kg): 0.612
Product Height (mm): 122.5
Product Width (mm): 90
Product Depth (mm): 90
Installation Requirements: must be installed before final plaster skim
Installation Orientation: Trimless - Install Before Plastering
Cutout Length: 95
Cutout Width: 95
Cutout Shape: Square
Recess Depth: 150
Country of Origin: China
Salt Spray Test: Not Tested
Power Supply Type: Mains 230V

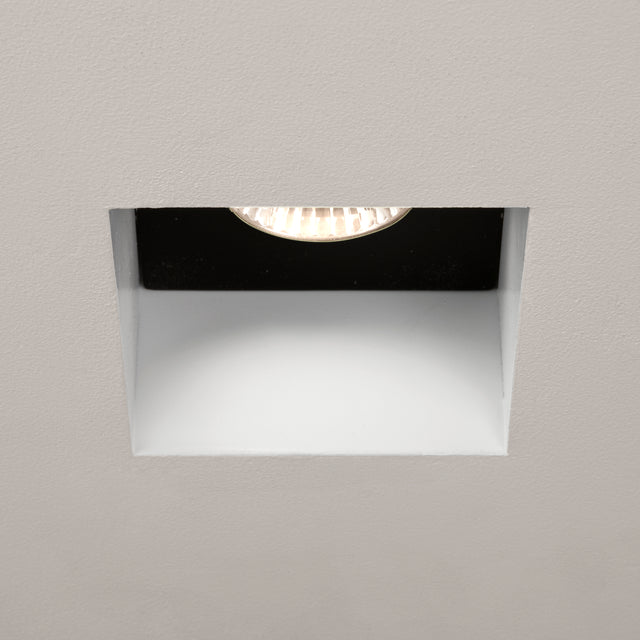

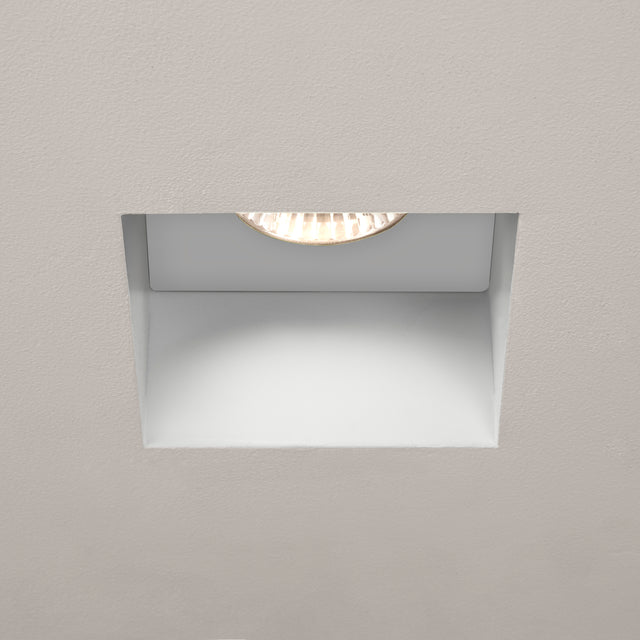

Placement Options: in all living areas where they can be installed before plastering and the Trimless will appear to blend in to the ceiling for a clean look
Casambi Compatible: Yes - with Casambi Phase Dimmer/Relay
Guarantee (Years): 3 Years
Relative Size: simple
Light Effect: ambient down lighting
Design Type: seamless
